Fire Shield - 120 - 20 Fire Barrier EN Tested



Product Description

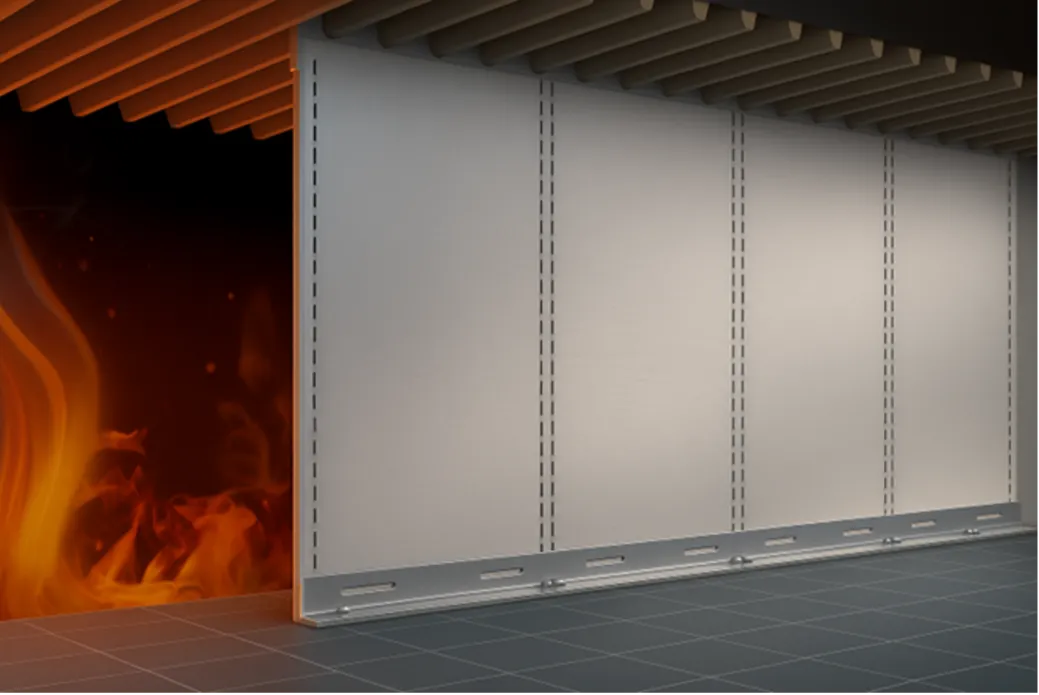

Stone Shield 120 is a super-lightweight, flexible fire curtain designed to provide 120 minutes integrity (E 120) with no thermal insulation (I 20) when tested to EN 1364 1:2015 (non-load bearing walls). It is ideal where flame and smoke containment is required without insulation.

Key Features

  • Durable for maximum protection: robust design
  • Mineral wool fully encapsulated in fully sewn case: clean maintenance and installation
  • Unique joining system offers quickest install of any curtain yet: reduced install time
  • Flexible Glass and Stone-fibre fabric curtain for rapid deployment
  • Minimal storage footprint: Rolls pack compactly
  • Easy to cut and trim using standard tools
  • Installer-friendly: Supplied with full illustrated fitting instructions

Dimensions & Packaging

  • Property: Value
  • Thickness: 25 mm
  • Roll Width: 1.0 m
  • Roll Length: 6 m
  • Coverage per Roll: 6 m²
  • Pack Weight ≈ 29.40 kg
  • Packing: Individual Plastic packing

Applications

  • Smoke and flame barrier in ceiling voids and partition openings
  • Temporary hatch and service penetration sealing
  • Retrofit fire upgrades in industrial and commercial buildings
  • Theatre and auditorium fire curtains where insulation not required

Certification:

Integrity (E): E 120 minutes at EN 1364 1:2015
Insulation (I): I 20 –insulation
Third-party certification: WF Report Certificate No.544439/R

Performance (EN 1364 1:2015):

Criterion: Classification
Integrity: E120
Insulation: I 20

Construction & Materials:

Component Material/Specification
Fabric Woven Glass-fibre cloth, proprietary binder
Coating High temperature – non-toxic finish
Reinforcement None (single-layer curtain)

Health, Safety & Environment

  • Wear gloves and safety glasses when handling and cutting.
  • Dust mask (EN 149 FFP2) recommended if fibre release occurs.
  • Refer to MSDS for full safety guidance.

Storage & Handling:

  • Store rolls horizontally in dry, indoor conditions (5 °C–30 °C).
  • Shelf life: N/A.

Installation

As per installation guide.

Data Sheet

Fire test certification
and MSDS data sheets

Installation Guide
